Troubleshooting Final Cut Pro templates

Final Cut Pro templates can add a lot of visual polish to your videos but sometimes they don’t behave as expected. Whether you’re dealing with missing elements, laggy playback, or installation issues, this article will help you quickly identify and fix common problems.

How to check software compatibility

Templates designed for specific versions of Final Cut Pro may not work correctly with older or unsupported versions. Using an incompatible version can result in templates failing to load, displaying incorrectly, or breaking during export

Steps to confirm compatibility:

  1. Open Final Cut Pro.
  2. Go to Final Cut Pro > About Final Cut Pro to view your current version.

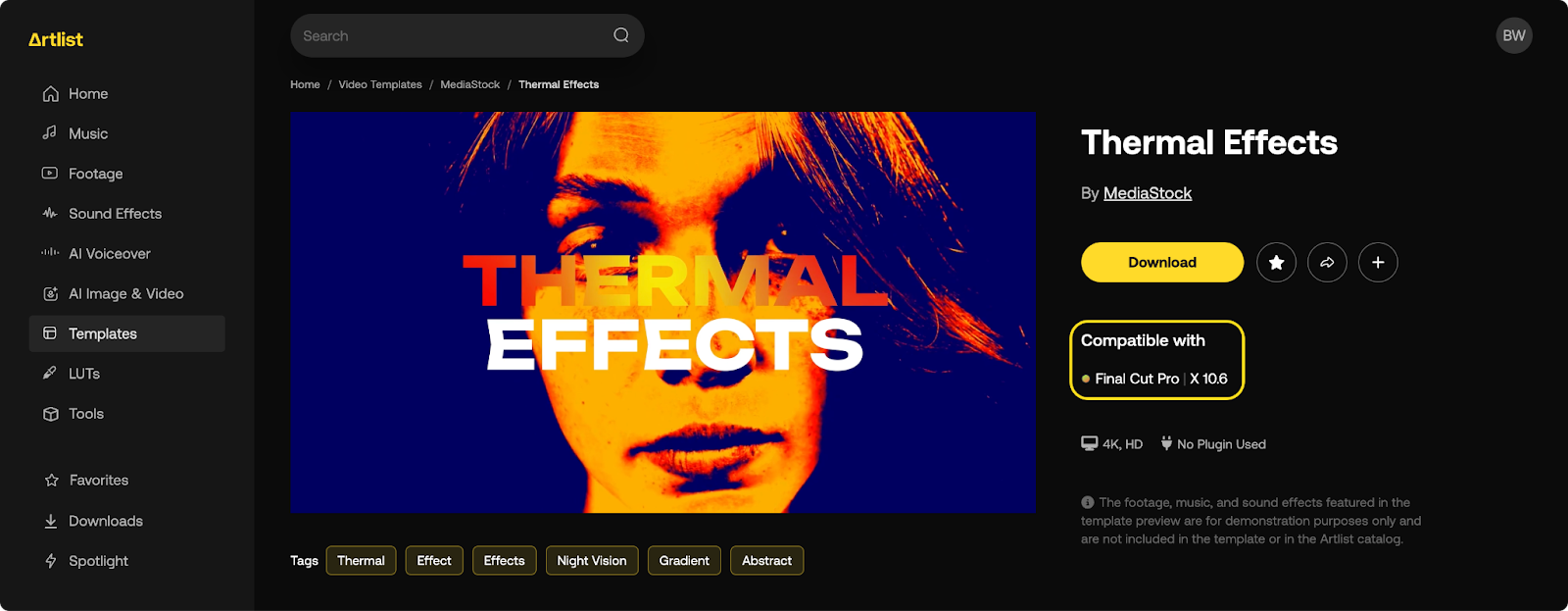

  3. Compare it to the compatibility information listed on the template asset page (usually on the right-hand side).

💡 Pro Tip: Make sure your macOS is also updated, as certain templates may rely on system-level graphics features available only in newer macOS versions.

How to check template installation location

Problem: Templates must be installed in the correct folder structure for Final Cut Pro to detect them. Missing or misnamed folders can prevent the software from recognizing even properly downloaded templates.

  1. Open Finder.
  2. From the top navigation bar, select Go.
  3. Click Home.
  4. Locate and open the Movies folder.
  5. Locate and open the Motion Templates folder.
  6. Inside, make sure you have the following subfolders:
    • Titles → for title templates (.moti)
    • Transitions → for transitions (.motr)
    • Effects → for effects (.moef)
    • Generators → for generators (.motn)

  1. Drag the template folder into the appropriate subfolder; Title, Transitions, Effects or Generators.
  2. Restart Final Cut Pro to load the new template.

💡 Pro Tip: Folder names must match exactly (case-sensitive) and use .localized extensions if required. Do not rename downloaded folders. Learn more here.

How to install required fonts

Problem: Text not displaying properly or layouts broken

Some Final Cut Pro templates use custom fonts. If these fonts are missing, the text may appear distorted or not show up at all.

Solution: Install fonts

  1. Locate the Fonts folder inside the downloaded template directory
  2. Open the font list document to identify all required fonts
  3. For each font:
    • Double-click the .ttf or .otf file.
    • Click Install Font (opens in Font Book).
  4. Restart Final Cut Pro after all fonts are installed.

💡 Pro Tip: Font issues won’t always display as errors. Missing fonts are silently replaced, often breaking design and animation timing.

How to render the timeline

Problem: Laggy playback, choppy motion, or black frames

If template elements are complex or your hardware is under heavy load, real-time playback may struggle. Rendering forces Final Cut Pro to pre-process graphics, transitions, and animations.

Solution: Render all Effects

  1. Click on the timeline to make sure it’s active.
  2. Go to Modify > Render All > Both.
  3. Wait for the rendering progress bar to finish.

Once complete, playback performance and visual accuracy should improve significantly.

How to delete render files

Problem: Timeline glitches, incomplete effects, or export failures

Outdated or corrupted render files can cause Final Cut Pro templates to misbehave or slow down project timelines.

Solution: Delete render files

  1. In the Library sidebar, select the Library containing your project.
  2. Go to File > Delete Generated Library Files.
  3. In the dialog box, check Delete Render Files and choose All.
  4. Click OK to confirm.

💡 Pro Tip: Deleting render files doesn’t delete project media. It clears cached preview files and frees up disk space.

How to fix frozen drop zones

Problem: Drop zone freezes on last frame

In Final Cut Pro templates, footage is added via drop zones. Drop zones allow users to insert their own video into templates. However, if the inserted video is too short, Final Cut Pro will hold the last frame to match the template’s duration—causing what appears to be a “freeze frame.”.

Solutions:

Option 1: Use a longer clip
Replace the short video with a clip that is long enough to cover the full duration of the drop zone animation.

Option 2: Shorten the Template
Adjust the length of the template to match the duration of the inserted clip.

Option 3: Use a Compound Clip

  1. In the timeline, select your clip.
  2. Right-click and choose New Compound Clip.
  3. Inside the compound clip, duplicate the footage or slow it down to extend its duration.
  4. Return to your template and select the compound clip from the Media Browser when assigning it to the drop zone.

💡 Pro Tip: Compound clips give you more control over timing without altering the original file.

How to relink missing files

Problem: Red warning Icon or “Missing File” message

When files used in a project are moved or renamed outside of Final Cut Pro, the application loses track of them and displays missing file warnings in the viewer and timeline.

Solution: Relink media

  1. In the Browser or Timeline, select the clip with the red “Missing File” warning.
  2. Go to File > Relink Files > Original Media.
  3. Final Cut Pro will display a list of missing files.
  4. Click Locate All or select individual files and click Locate Selected.
  5. Use the dialog to browse to the correct folder or use the search bar to find the file.
  6. Once found, select the file and click Choose.

Final Cut will relink the selected file and attempt to automatically restore any others in the same directory.

💡 Pro Tip: Keep all project assets in a dedicated, organized folder to avoid relinking issues when moving between drives or systems.
